Best Spiral Saw Pipes Manufacturers in India
Submerged ARC Welded tubes are used extensively for the Water Transportation, Energy Transportation in Oil & Gas sector, High temperature and pressure application in refineries and petrochemical units, Conductor casing for oil and gas exploration along with usage in the agriculture and construction industry. Hi-Tech’s HSAW Pipes boost of top notch quality standards, meeting both national and international benchmarks. Ranging from Outer Diameter 400 mm – 1600 mm and wall thickness of up to 14 mm, Hi-Tech’s pipes has not just helped in meeting the growing need of Water & Oil & Gas transportation of the nation but has also helped its customers overcome differnt challenges faced across different industries. The top notch quality standard maintained by Hi-Tech over the years has helped the company to not only stand out amongst the crowd but also helped the company stay ahead of the curve.
-

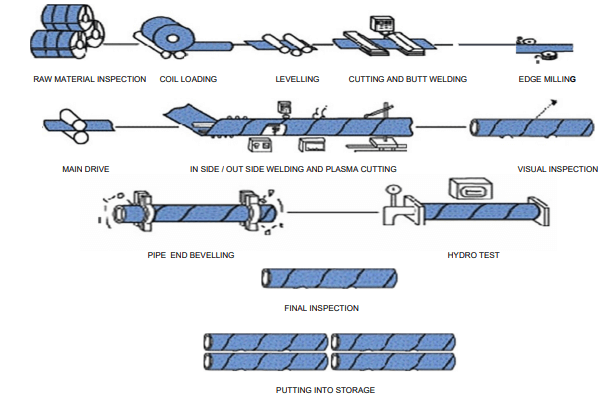

Raw Material Inspection
-
Levelling
-
Cutting and Butt Welding
-
EDGE Milling
-
Visual Inspection
-
Pipe and Bevelling
-
Hydro Test
-
Final Inspection
-
Putting into Storage
Manufacturing
In a very short span of time, HiTech SAW Limited, have already started to make a name for itself in the SAW pipes segment – thanks to its experienced management and strong manufacturing capabilities. Engaged in the Manufacturing of a wide range of superior quality SAW pipes, its product range includes, Equipped with our state-of-the-art manufacturing facilities, 100% hydro testing facilities and a fully functional modern in-house laboratory, Hi-Tech SAW have been successful in creating an unparalleled position for itself to roll out quality products at competitive prices. By proactively investing in manufacturing capabilities and technologies, Hi-Tech SAW have been highly successful in responding to emerging opportunities across the industry.
| Size | 400mm – 1600MM |
| Thickness | 5.00mm – 14.00 MM |
| Grades | Fe 330, Fe 410, Fe 450 |
| End Finish | Bevelled Ends |
| External Coating | Epoxy / Black Coal tar,PU Coating, Liquid Epoxy Coating, Guniting, Coal Tartape Coating, Epoxy Based Painting, External Varnishing, Food Grade Epoxy |
| Internal Coating | Liquid Epoxy/ Cement Mortar Lining,Liquid Epoxy |
Technical specifications
| INCH | MM | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 8 | 8.5 | 9 | 9.5 | 10 | 10.5 | 11 | 11.5 | 12 | 12.5 | 14 |
| 18 | 457.2 | 55.76 | 61.27 | 66.76 | 72.25 | 77.72 | 83.18 | 88.62 | 94.06 | 99.48 | 104.89 | 110.29 | 115.67 | 121.04 | 126.40 | 131.75 | 137.09 | 153.02 |
| 20 | 508 | 62.02 | 68.16 | 74.28 | 80.39 | 86.49 | 92.57 | 98.65 | 104.71 | 110.75 | 116.79 | 122.81 | 128.83 | 134.82 | 140.81 | 146.79 | 152.75 | 170.56 |
| 22 | 558.8 | 68.29 | 75.05 | 81.80 | 88.53 | 95.26 | 101.97 | 108.67 | 115.36 | 122.03 | 128.69 | 135.34 | 141.98 | 148.61 | 155.22 | 161.82 | 168.41 | 188.10 |
| 24 | 609.6 | 74.55 | 81.94 | 89.31 | 96.68 | 104.03 | 111.37 | 118.69 | 126.00 | 133.31 | 140.59 | 147.87 | 155.13 | 162.39 | 169.63 | 176.85 | 184.07 | 205.64 |
| 26 | 660.4 | 80.82 | 88.83 | 96.83 | 104.82 | 112.80 | 120.76 | 128.71 | 136.65 | 144.58 | 152.50 | 160.40 | 168.29 | 176.17 | 184.03 | 191.89 | 199.73 | 223.18 |
| 28 | 711.2 | 87.08 | 95.72 | 104.35 | 112.96 | 121.57 | 130.16 | 138.74 | 147.30 | 155.86 | 164.40 | 172.93 | 181.44 | 189.95 | 198.44 | 206.92 | 215.39 | 240.72 |
| 30 | 762 | 93.34 | 102.61 | 111.86 | 121.11 | 130.34 | 139.55 | 148.76 | 157.95 | 167.13 | 176.30 | 185.45 | 194.60 | 203.73 | 212.85 | 221.95 | 231.05 | 258.26 |
| 32 | 812.8 | 99.61 | 109.50 | 119.38 | 129.25 | 139.11 | 148.95 | 158.78 | 168.60 | 178.41 | 188.20 | 197.98 | 207.75 | 217.51 | 227.25 | 236.99 | 246.71 | 275.79 |
| 34 | 863.6 | 105.87 | 116.39 | 126.90 | 137.39 | 147.88 | 158.35 | 168.80 | 179.25 | 189.68 | 200.10 | 210.51 | 220.91 | 231.29 | 241.66 | 252.02 | 262.37 | 293.33 |
| 36 | 914.4 | 112.14 | 123.28 | 134.42 | 145.54 | 156.64 | 167.74 | 178.83 | 189.90 | 200.96 | 212.00 | 223.04 | 234.06 | 245.07 | 256.07 | 267.05 | 278.03 | 310.87 |
| 38 | 965.2 | 118.40 | 130.17 | 141.93 | 153.68 | 165.41 | 177.14 | 188.85 | 200.55 | 212.23 | 223.91 | 235.57 | 247.22 | 258.85 | 270.48 | 282.09 | 293.69 | 328.41 |
| 40 | 1016 | 124.66 | 137.06 | 149.45 | 161.82 | 174.18 | 186.53 | 198.87 | >211.19 | 223.51 | 235.81 | 248.09 | 260.37 | 272.63 | 284.88 | 297.12 | 309.35 | 345.95 |
| 42 | 1066.8 | 130.93 | 143.95 | 156.97 | 169.97 | 182.95 | 195.93 | 208.89 | 221.84 | 234.78 | 247.71 | 260.62 | 273.52 | 286.41 | 299.29 | 312.16 | 325.01 | 363.49 |
| 44 | 1117.6 | 137.19 | 150.84 | 164.48 | 178.11 | 191.72 | 205.33 | 218.92 | 232.49 | 246.06 | 259.61 | 273.15 | 286.68 | 300.19 | 313.70 | 327.19 | 340.67 | 381.03 |
| 46 | 1168.4 | 143.46 | 157.73 | 172.00 | 186.25 | 200.49 | 214.72 | 228.94 | 243.14 | 257.33 | 271.51 | 285.68 | 299.83 | 313.98 | 328.11 | 342.22 | 356.33 | 398.57 |
| 48 | 1219.2 | 149.72 | 164.62 | 179.52 | 194.40 | 209.26 | 224.12 | 238.96 | 253.79 | 268.61 | 283.41 | 298.21 | 312.99 | 327.76 | 342.51 | 357.26 | 371.99 | 416.11 |
| 52 | 1320.8 | 162.25 | 178.40 | 194.55 | 210.68 | 226.80 | 242.91 | 259.00 | 275.09 | 291.16 | 307.22 | 323.26 | 339.30 | 355.32 | 371.33 | 387.32 | 403.31 | 451.19 |
| 54 | 1371.6 | 168.51 | 185.30 | 202.07 | 218.83 | 235.57 | 252.31 | 269.03 | 285.74 | 302.43 | 319.12 | 335.79 | 352.45 | 369.10 | 385.73 | 402.36 | 418.97 | 468.73 |
| 56 | 1422.4 | 174.78 | 192.19 | 209.58 | 226.97 | 244.34 | 261.70 | 279.05 | 296.39 | 313.71 | 331.02 | 348.32 | 365.61 | 382.88 | 400.14 | 417.39 | 434.63 | 486.27 |
| 60 | 1524 | 187.30 | 205.97 | 224.62 | 243.25 | 261.88 | 280.49 | 299.09 | 317.68 | 336.26 | 354.82 | 373.38 | 391.91 | 410.44 | 428.96 | 447.46 | 465.95 | 521.34 |
| 64 | 1625.6 | 199.83 | 219.75 | 239.65 | 259.54 | 279.42 | 299.29 | 319.14 | 338.98 | 358.81 | 378.63 | 398.43 | 418.22 | 438.00 | 457.77 | 477.53 | 497.27 | 556.42 |
